Fiat’s 500 automatic transmission can describe more than one drivetrain. Some global-market 500s use Fiat’s Dualogic automated manual; North American 500s use a conventional six-speed automatic; and the battery-electric 500e uses a single-speed reduction drive. A symptom that is normal in one system can be a red flag in another, so identify the car before approving repairs.
Contents

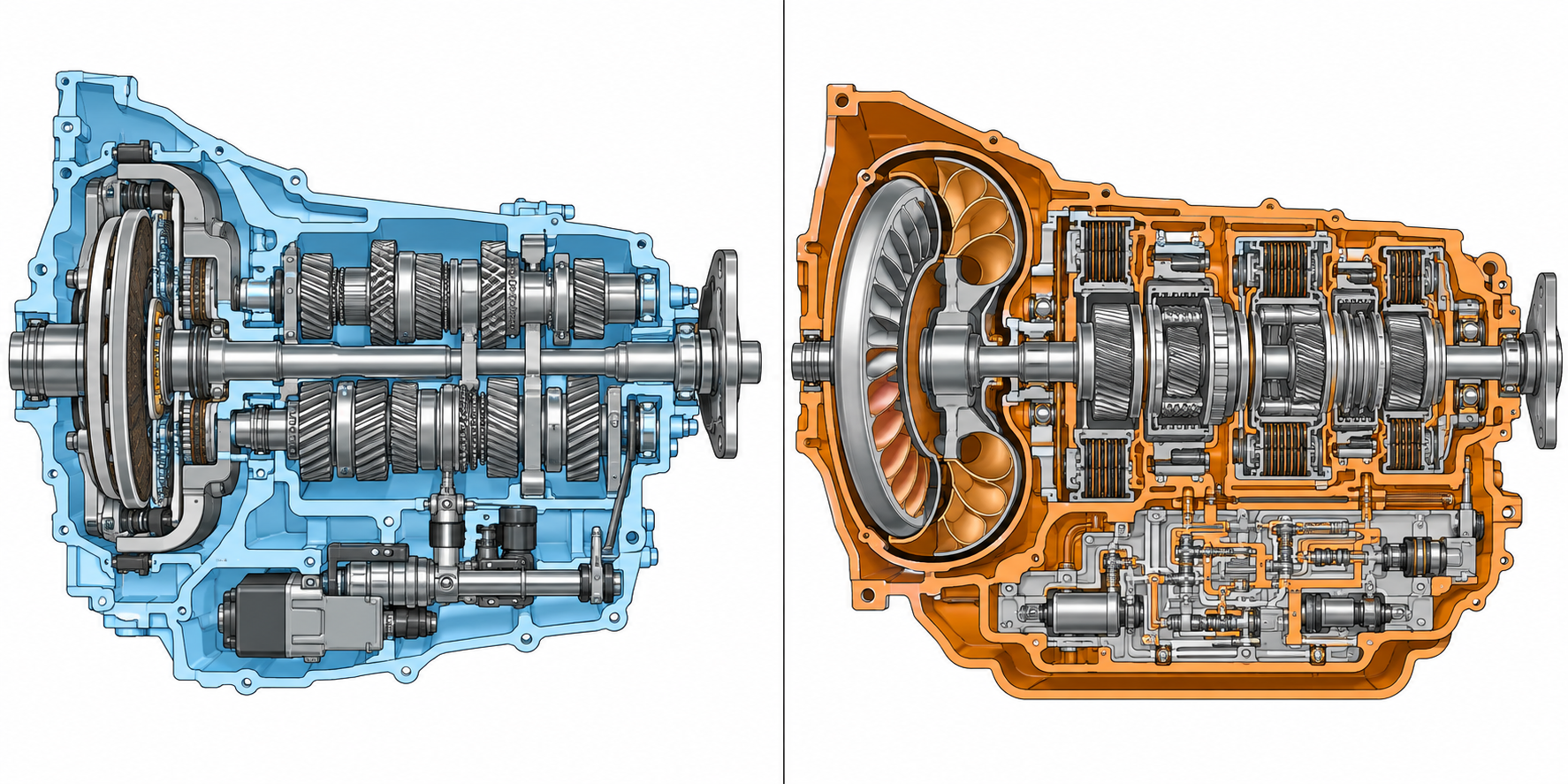

Fiat 500: Dualogic vs. Aisin vs. 500e Automatic Transmission
European and many other global-market Fiat 500s were available with Dualogic, also called MTA in some applications. It is not a torque-converter automatic. At its core is a conventional manual gearbox with one dry clutch. An electro-hydraulic actuator, pump, sensors, and control unit operate the clutch and select gears. The driver gets two pedals and an automatic mode, but the hardware still interrupts torque during each shift like a manual. A brief pause or head-nod between gears can therefore be characteristic rather than proof of a defect.
By contrast, North American Fiat 500 models sold from 2012 through 2019 with an automatic use a conventional six-speed torque-converter automatic, commonly identified as the Aisin AW6F25. Later European 500L and 500X automatic variants also use conventional automatics, though exact fitment varies by market, engine, and year. These transmissions use hydraulic fluid, a torque converter, valve-body controls, and clutch packs; they should not be diagnosed as Dualogic units.
The 500e is different again. Its electric motor drives through a fixed-ratio, single-speed reduction gear. It has no shifting clutch packs, torque converter, or multi-speed geartrain. Owners may still hear whine, feel a driveline clunk, or see a propulsion fault, but calling those problems “automatic transmission failure” can send a diagnosis in the wrong direction.
A Brief History of Fiat 500 Transmission Options by Model Year
Model year alone is not enough because the Fiat 500 has been sold in different markets with different drivetrains. For the North American two-door 500, the important baseline is simple: 2012–2019 automatic-equipped cars used the conventional six-speed automatic rather than Dualogic. Manual-transmission cars are a separate category. The 2013 500e, sold in limited U.S. markets and later years in California-emissions states, used its dedicated electric drive reduction gear.
For the European-style 500, Dualogic was offered on several gasoline and diesel versions, particularly in earlier generations. It is best identified by the vehicle’s market, VIN/build data, transmission code, and equipment label—not by a seller’s generic “automatic” description. The larger 500L and crossover-like 500X add another source of confusion because later automatic variants used conventional automatics, with specifications varying by engine and region.
Before ordering parts, have a shop confirm the exact transmission from the VIN and scan-tool data. This prevents an expensive but avoidable mistake: a parts catalog or online listing can group several Fiat 500 variants together even though the drivetrains are unrelated.

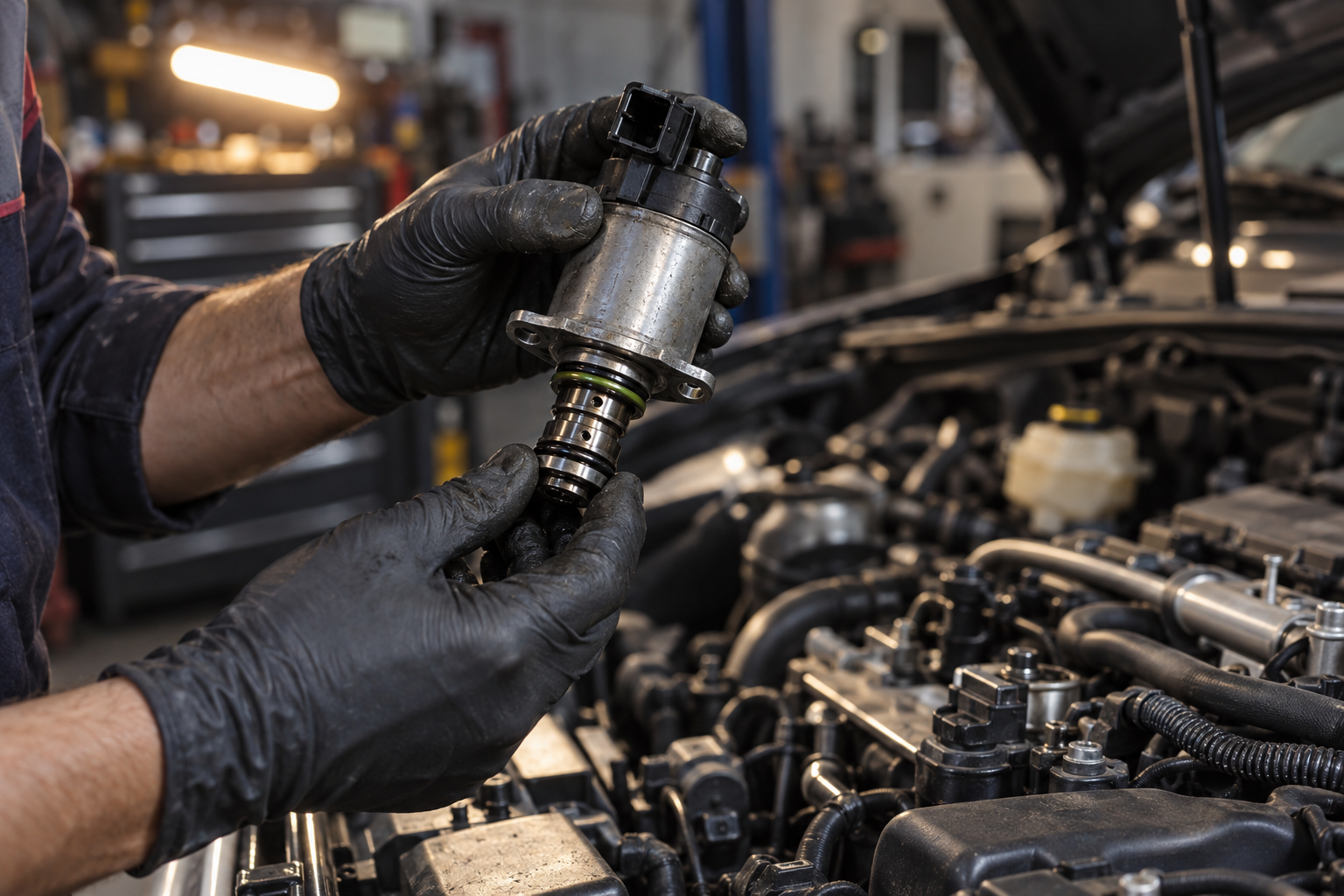

Common Dualogic (Automated Manual) Problems
Dualogic complaints usually center on the actuation system rather than broken gears. A tired pump, weak pressure accumulator, leaking seal, sticking solenoid, failing sensor, or wiring fault can cause slow engagement, harsh shifts, a flashing neutral display, or refusal to select a gear. A worn dry clutch can produce shudder, slipping, or increasingly poor takeoff quality, just as it can in a regular manual car.
Calibration matters. After clutch, actuator, or related hydraulic work, the control unit may need a correct relearn or calibration procedure. Skipping that step can leave a repair looking like a new failure. Low voltage can also confuse electronically controlled gearboxes, so battery condition, grounds, and charging performance deserve attention before condemning expensive components.
Some owners report that the car feels hesitant in traffic or rolls back slightly on a hill. Because Dualogic disconnects the clutch during shifts, it will not feel like a smooth conventional automatic. The question is whether the behavior is repeatable and worsening, accompanied by warnings, pump cycling, fluid leaks, or a failure to engage. Those are reasons for a specialist diagnosis rather than a generic fluid service.
Common Aisin 6-Speed Automatic Problems (North American Models)
On a North American automatic 500, assess it as a conventional six-speed. Complaints can include delayed engagement into Drive or Reverse, harsh or flare-like shifts, shudder, slipping, warning lights, and transmission-related diagnostic trouble codes. Fluid condition, the valve body or solenoids, internal clutch wear, sensor inputs, adaptation values, and external linkage all belong in the diagnostic tree.
Not every shifting complaint is an internal failure. NHTSA recall 19V-817 covered certain 2012–2013 Fiat 500 vehicles equipped with the six-speed automatic because the transmission-end shifter-cable bushing could deteriorate and detach. The risk was that the selected position at the shifter might not match the transmission’s actual gear position. A dealer or owner should check recall completion by VIN; it is a linkage issue, not evidence that the Aisin unit itself needs replacement.
A conventional automatic can also react badly to an engine problem, low system voltage, or a damaged mount. Good diagnosis separates a true transmission fault from a drivability issue that merely feels like one.
Warning Signs and Symptoms to Watch For
Do not ignore a warning light, repeated failure to engage a gear, a new burning smell, a major fluid leak, or a car that moves unexpectedly after a gear selection. On a Dualogic car, flashing neutral, repeated pump noise, an inability to leave neutral, or worsening takeoff shudder justify prompt inspection. On a conventional automatic, delayed Drive/Reverse engagement, persistent flare between shifts, harsh banging, or slipping under load warrant a scan and road test.
Document when the symptom appears: cold versus hot, uphill versus level, during the first shift, or after a long drive. Note whether a warning appears and whether the issue occurs in both forward and reverse. That record helps the technician distinguish an intermittent voltage, actuator, hydraulic, linkage, or internal mechanical problem.
How Mechanics Diagnose Fiat 500 Transmission Issues

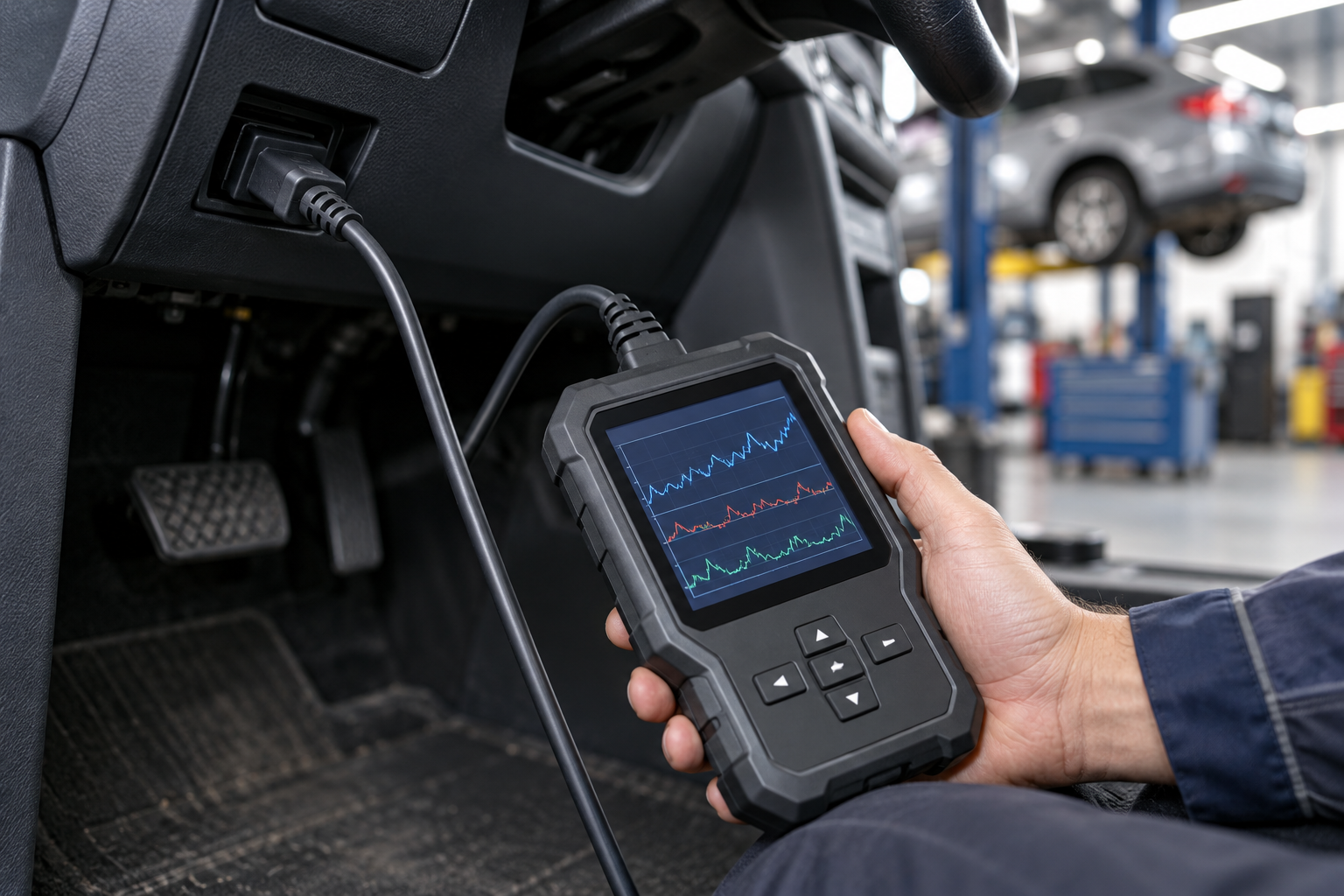

A careful shop starts with identification. It verifies the VIN, market, engine, and transmission type, then scans all relevant modules, not only the engine computer. It checks battery voltage, charging voltage, grounds, visible leaks, linkage operation, and stored codes before clearing anything. A road test should reproduce the complaint only when it is safe to do so.
For Dualogic, the technician may inspect hydraulic pressure behavior, actuator operation, clutch wear data, selector position feedback, and calibration status. For the Aisin automatic, the work may include checking fluid condition and correct level by the specified procedure, evaluating live data, considering solenoid or valve-body behavior, and ruling out related engine or mount faults. A diagnosis should state what has actually failed and what tests support it; “needs a transmission” without those details is not enough.

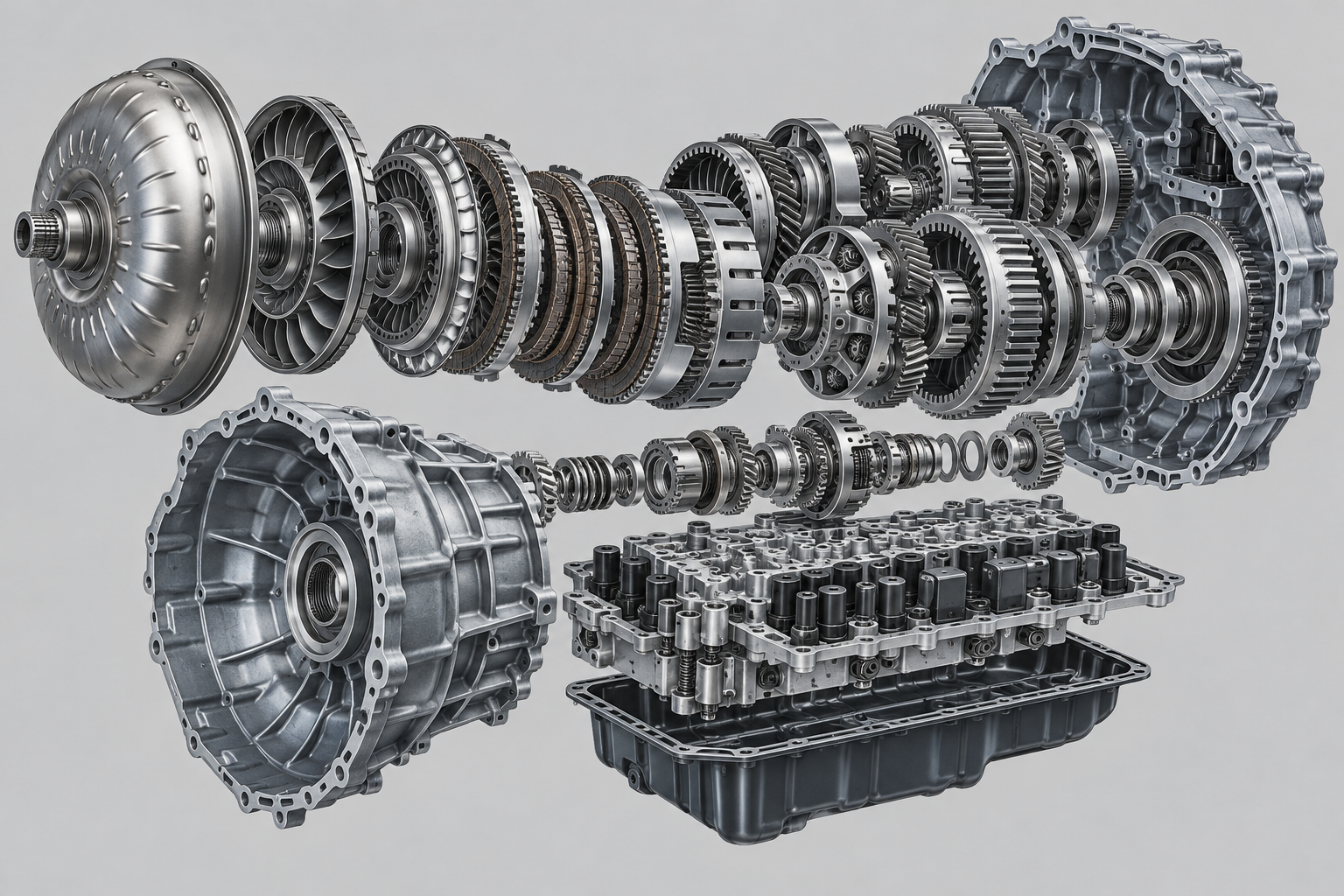

Repair vs. Full Replacement
Targeted repair makes sense when testing isolates a serviceable cause. A Dualogic actuator leak, pump issue, clutch, sensor, harness fault, or missed calibration may cost far less than replacing the entire mechanical gearbox. Similarly, a conventional automatic with an external linkage defect, electrical fault, or identified valve-body/solenoid problem should not automatically receive a complete replacement.
Replacement becomes more credible when there is confirmed internal damage, severe metal contamination, repeated internal faults after competent repair, or a rebuild quote that approaches the installed price of a warranted replacement. Compare like with like: used, rebuilt, remanufactured, and new assemblies have very different prices and warranties. Ask whether programming, fluids, seals, mounts, torque converter where applicable, and any core charge are included.
Transmission Replacement Cost Breakdown (Parts, Labor, Region)
Use the following as a practical U.S. budgeting guide for a confirmed fault, not as a reason to approve a transmission before the shop identifies the gearbox and scan results. The figures below include the kinds of parts and labor commonly missed in a headline quote. Taxes, towing, rental car, and regional labor-rate differences are extra unless the estimate says otherwise.
| Repair path | Realistic budget | What that should include |
|---|---|---|
| Diagnostic inspection and scan | $150–$250 | Road test where safe, full-module scan, battery/charging check, visual leak and linkage check, and a written finding. Do this before authorizing major work. |
| Open recall repair | $0 | For an eligible, still-open recall. NHTSA campaign 19V-817 covered certain 2012–2013 automatic Fiat 500s for a shifter-cable bushing; the dealer remedy was free. Check the VIN, because this is not a replacement-transmission repair. |
| Routine Aisin automatic fluid service | $149–$177 | RepairPal’s Fiat 500 estimator lists this range for a transmission-fluid change. It is maintenance, not a cure for slipping, metal contamination, or a failed internal component. |
| External linkage, sensor, wiring, or calibration repair | $250–$1,000 | Diagnosis, small parts, electrical repair, programming, and relearn. Get the failed part and test result listed on the estimate. |
| Dualogic clutch or hydraulic-actuation repair | $900–$2,500 | Typical planning allowance for a clutch, pump/pressure issue, actuator reseal or replacement, fluid, calibration, and labor. A specialist should separate the mechanical gearbox from the electro-hydraulic actuator before quoting a complete unit. |
| Used Aisin six-speed automatic installed | $2,100–$3,400 | Current recycled-unit listings for 2012–2014 two-door Fiat 500 automatics show roughly $1,010–$1,175 for the parts-only transmission. Allow about $900–$1,800 for removal/reinstallation plus $150–$350 for fluid, seals, and shop supplies. Confirm the exact transmission code, mileage, warranty, and whether the torque converter is included. |
| Rebuilt or remanufactured automatic installed | $3,500–$6,000 | A complete unit with labor, fluid, seals, programming/adaptation, and warranty. This is often the sensible choice when a used unit has unknown history or the car will be kept long term. |
| New OEM assembly or dealer-level replacement | $5,000–$7,000+ | Usually the highest-cost path. Ask whether the estimate includes the torque converter, transmission cooler/line cleaning, mounts, software setup, taxes, and the core charge. |
Budget decision rule: a quote below about $1,000 should normally identify a specific external, electrical, linkage, calibration, or service issue. A $2,000–$3,500 quote may be reasonable for a correctly matched used automatic installed with a meaningful warranty. Once the estimate reaches roughly $4,000 or more, compare a remanufactured unit, a reputable rebuild, the vehicle’s market value, and a second opinion from a Fiat or transmission specialist.
Before saying yes, require five line items: the exact failed component; labor hours and hourly rate; transmission source and warranty; fluids, seals, programming, and core charge; and the total after taxes and shop supplies. If the estimate simply says “transmission needed” without codes, fluid findings, or a failed-part explanation, pay for a second diagnosis.
Preventive Maintenance to Extend Transmission Life

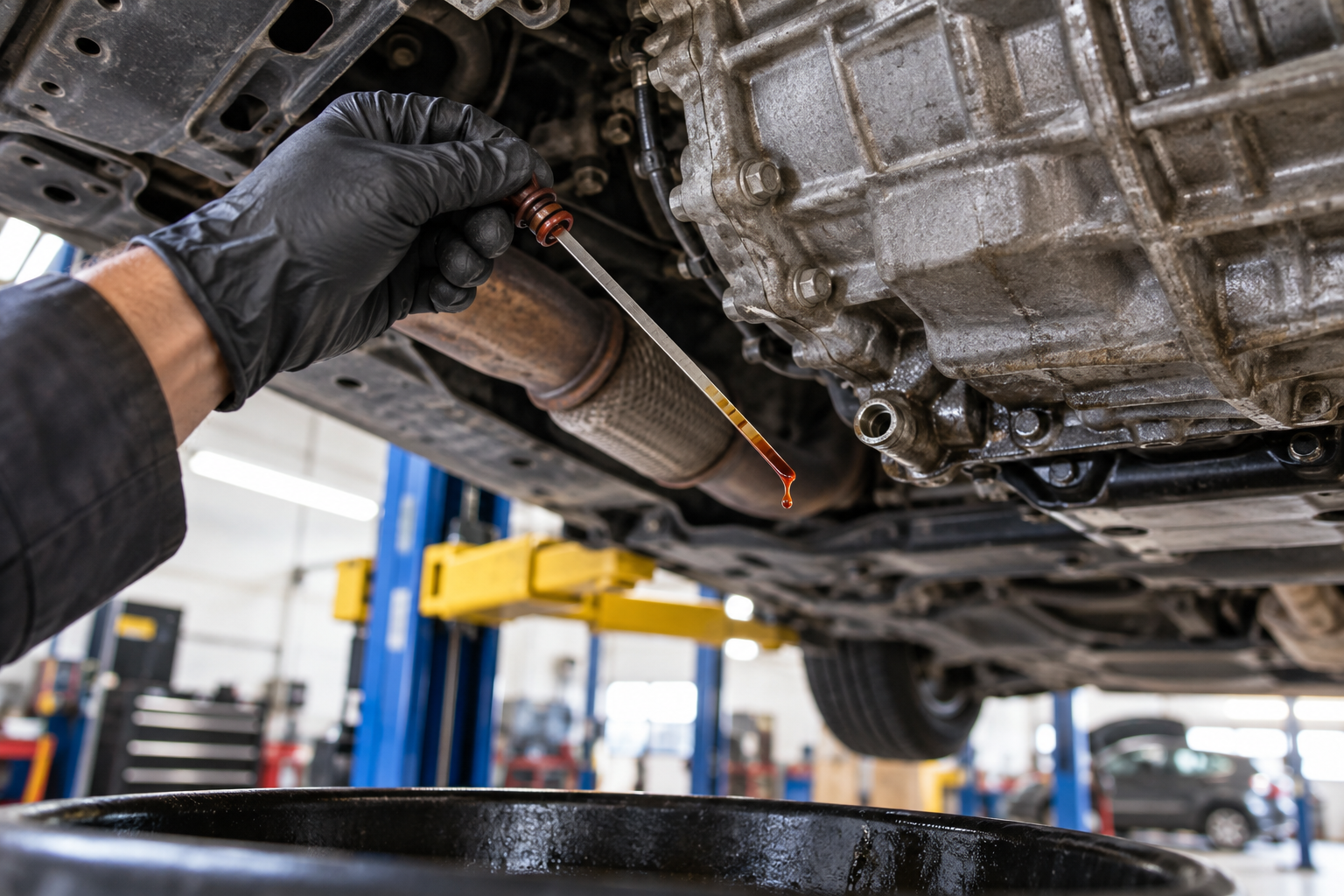

Use the exact fluid specification and service procedure for the identified transmission. Do not put ordinary automatic-transmission fluid into a Dualogic hydraulic actuation system, and do not assume that a fluid change can repair a worn clutch or failing actuator. Follow the owner’s manual and service information for the specific VIN; requirements vary by market and gearbox.
Keep the battery and charging system healthy, correct leaks early, and avoid repeated overheating or aggressive creeping in stop-and-go traffic. On a Dualogic, smooth throttle inputs and avoiding prolonged hill-holding on the clutch can reduce stress. On a conventional automatic, investigate shudder, delayed engagement, or abnormal fluid odor before they escalate. A trained Fiat or transmission specialist is especially useful when a shop is unfamiliar with automated manuals.
The Fiat 500e: A Different Kind of “Transmission”
The 500e does not have a conventional automatic transmission. Its electric motor uses a single-speed reduction gear, so there are no routine shifts and no torque converter or multi-speed clutch packs to diagnose. That distinction can save time and money: a propulsion warning, reduced-power event, bearing noise, or driveline clunk should be evaluated in the context of the high-voltage system, motor, inverter, reduction gear, axles, and mounts.
Because electric-vehicle service includes high-voltage safety procedures, a qualified EV technician should handle faults beyond basic visual checks. Do not assume a noise at low speed means the reduction gear has failed; tires, wheel bearings, brakes, axles, and mounts can mimic driveline symptoms.
Frequently Asked Questions
Is Dualogic a real automatic? It provides automatic shifting, but mechanically it is a single-clutch automated manual, not a torque-converter automatic.
Do all U.S.-market Fiat 500 automatics use Dualogic? No. The 2012–2019 North American Fiat 500 automatic uses a conventional six-speed automatic. Confirm individual-vehicle equipment by VIN.
Can a software update fix a harsh shift? Sometimes an adaptation, calibration, or control issue contributes, but software cannot repair a worn clutch, failed actuator, internal mechanical damage, or defective linkage. Diagnose first.
Should I replace the transmission after a recall notice? No. A recall remedy addresses the stated defect. For example, NHTSA 19V-817 concerns a shift-cable bushing on certain 2012–2013 automatic cars, not an automatic mandate to replace the transmission.
Does a 500e have transmission fluid service like an automatic? It does not use a conventional automatic transmission. Follow the service information for the exact electric model rather than applying internal-combustion transmission advice.
Key Takeaways
First identify the drivetrain. Dualogic faults commonly involve the clutch or electro-hydraulic actuation system; North American 500 automatic complaints require conventional six-speed diagnosis; and the 500e has a fixed-ratio electric reduction drive rather than a multi-speed transmission. Get VIN-specific diagnosis, check open recalls, request an itemized estimate, and compare repair, used, rebuilt, and remanufactured options before authorizing a replacement.
Disclaimer: costs vary by region, labor rate, parts availability, and independent versus dealer shop. Obtain a local written quote for the exact vehicle and transmission.
Source context: NHTSA recall 19V-817 documentation for affected 2012–2013 Fiat 500 automatic vehicles; RepairPal’s 2013 Fiat 500 ownership page and national transmission-replacement estimator. Verify recalls by VIN and confirm current pricing locally.
