The 2012 Honda Civic does not have one universal transmission-fluid specification. The ninth-generation Civic was sold with several powertrains, including the 1.8-liter R18Z1 with either a 5-speed manual or 5-speed automatic transmission and the 2.4-liter K24Z7 Civic Si with a 6-speed manual. Sedan and coupe availability also varied by trim. Honda’s own 2012 specifications confirm these drivetrain combinations, while contemporary Edmunds and Car and Driver data independently match them.
For the mainstream 1.8-liter Civic, Honda specifies Honda ATF DW-1 for the automatic and Honda Manual Transmission Fluid (MTF) for the manual. Honda lists a normal fluid-change quantity of 2.5 US qt (2.4 L) for the automatic and 1.5 US qt (1.4 L) for the 1.8-liter manual. The Civic Si’s 6-speed manual uses Honda MTF and has a documented change quantity of 2.0 US qt (1.9 L). These are service or drain-and-refill quantities, not dry-transmission capacities.
Important: The figures below are general service guidance. Confirm the transmission fitted to your vehicle and verify the specification against the VIN-specific owner’s manual, Honda factory service information, or a Honda dealer before servicing it. Using the wrong fluid or incorrect quantity can cause poor operation and potentially transmission damage.
Contents
Transmission Options on the 2012 Civic
In the U.S.-market 2012 Civic range, the regular gasoline Civic used a 1.8-liter engine. Honda offered a 5-speed manual on several sedan and coupe trims and a 5-speed automatic on others. The performance Civic Si used the 2.4-liter K24Z7 and a close-ratio 6-speed manual transmission. Honda service information identifies the regular 1.8-liter engine family as R18Z1 and the Si engine as K24Z7.
Body style by itself is therefore not enough to select fluid. A 2012 Civic coupe, for example, could have a 1.8-liter 5-speed manual, a 1.8-liter 5-speed automatic, or, in Si form, the 2.4-liter 6-speed manual. Honda’s contemporary specifications confirm both manual and automatic choices for the regular coupe, while the Si was manual-only.
There was also a Civic Hybrid with a CVT and a Civic Natural Gas model. Those versions should be treated separately rather than assuming the gasoline Civic specifications below apply. Honda’s 2012 powertrain summary identifies the Hybrid’s CVT as a separate transmission configuration.
Recommended Fluid Type: Automatic
For the conventional 5-speed automatic used with the 1.8-liter engine, Honda specifies:
Honda Genuine ATF DW-1 automatic transmission fluid.
Honda’s service information specifically warns against mixing DW-1 with other transmission fluids and states that a non-Honda fluid can adversely affect transmission operation and durability.
This Civic predates the CVT that became common in later mainstream Civics, so a standard 2012 1.8-liter Civic with the 5-speed automatic should not be filled using a later Civic CVT-fluid specification simply because both cars carry the Civic name.
For a routine drain and refill, Honda lists 2.5 US qt (2.4 L). That number means “change capacity.” A substantial amount of ATF remains inside the torque converter, passages and transmission after the drain plug is removed.
Recommended Fluid Type: Manual
Both manual configurations call for Honda Manual Transmission Fluid (Honda MTF). The capacity, however, differs between the regular 1.8-liter transmission and the Si 6-speed.
For the R18Z1 1.8-liter Civic, Honda lists 1.5 US qt (1.4 L) for a fluid change. For the K24Z7 Civic Si, the service specification is 2.0 US qt (1.9 L).

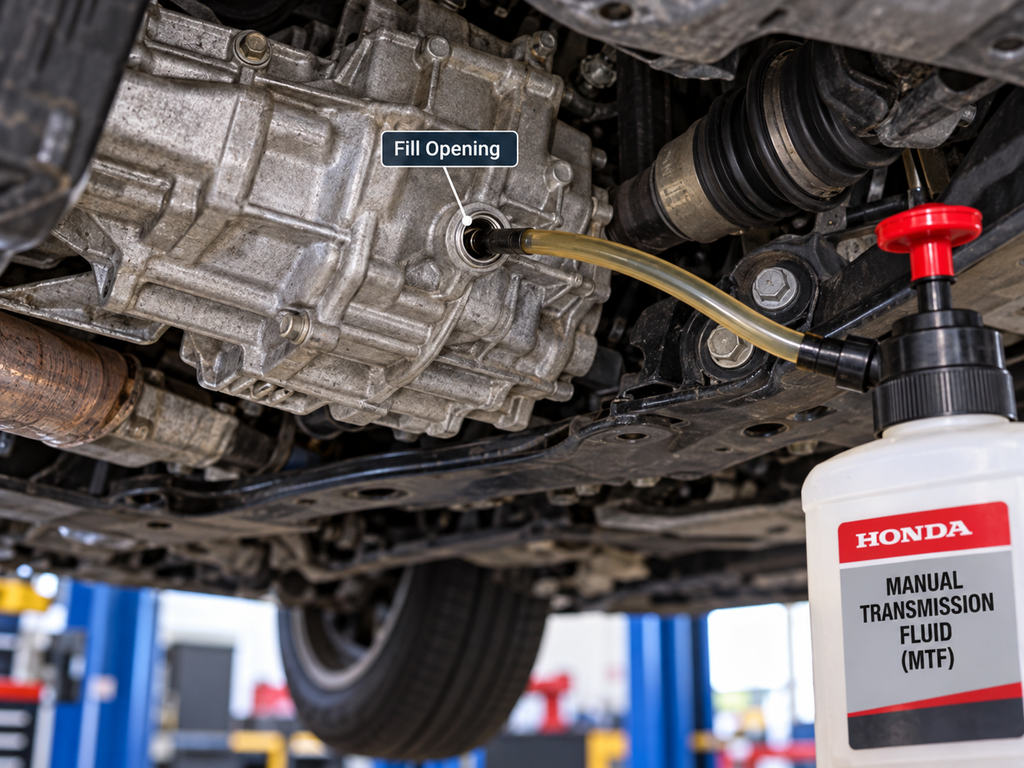

Honda’s owner’s manual describes the manual-transmission level check differently from the automatic: the car must be level, the filler bolt is removed, and the correct level is at the lower edge of the filler opening. If low, Honda MTF is added until it reaches or begins to run from the opening.
The manual specifies installing a new sealing washer on the filler bolt and gives a tightening torque of 33 lb-ft (44 N·m) for the documented 2012 Civic procedure.
[IMAGE-8]
There is one source discrepancy worth noting. The 2012 owner’s-manual material says API-certified SAE 0W-20 or 5W-20 engine oil can be used temporarily if Honda MTF is unavailable, while one mirrored factory-service reference lists 10W-30 or 10W-40 as a temporary substitute. Because those references conflict, the safest approach is not to rely on either substitution for normal service: use Honda MTF and confirm any emergency substitute against the manual supplied for the specific vehicle.

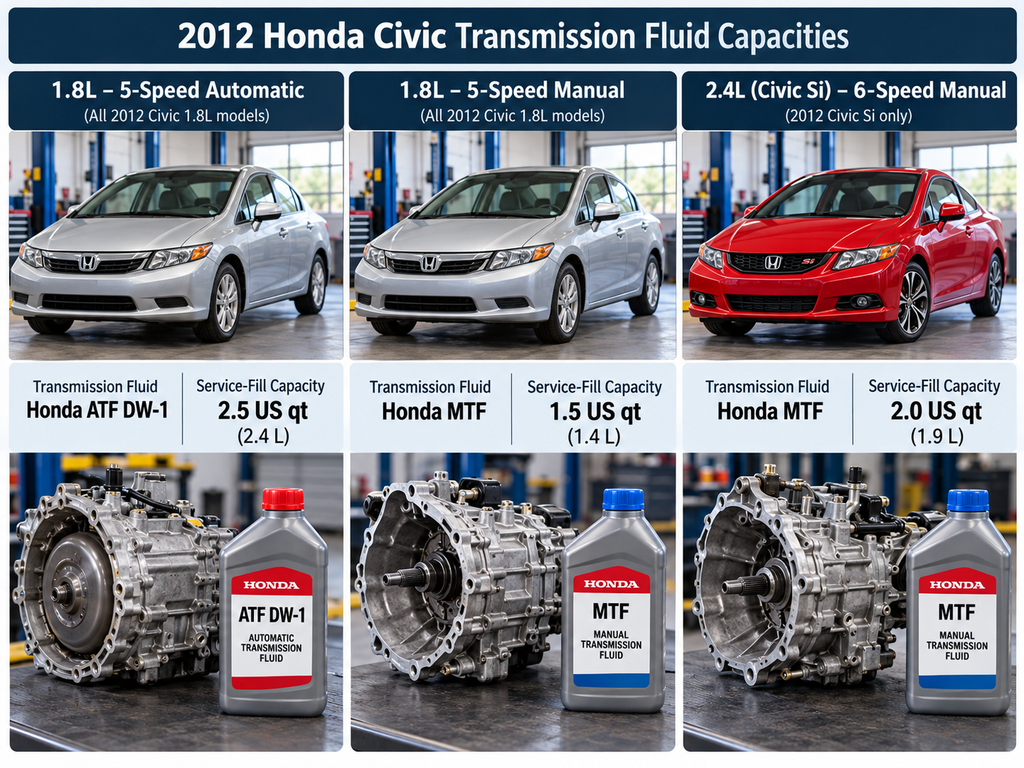

Fluid Capacity Reference Table
| Engine / application | Transmission | Fluid type | Approx. service capacity* |
|---|---|---|---|
| 1.8L R18Z1, sedan/coupe | 5-speed automatic | Honda ATF DW-1 | 2.5 US qt (2.4 L) drain/refill |
| 1.8L R18Z1, sedan/coupe | 5-speed manual | Honda Manual Transmission Fluid (MTF) | 1.5 US qt (1.4 L) change |
| 2.4L K24Z7 Civic Si, sedan/coupe | 6-speed manual | Honda Manual Transmission Fluid (MTF) | 2.0 US qt (1.9 L) change |
*Confirm against the factory service manual or VIN-specific owner’s manual before servicing.
Drain-and-refill versus total/dry-fill capacity
The distinction matters. The verified Honda specifications above explicitly identify these figures as “Change” capacities. They are the quantities associated with normal service, not the amount required to fill a completely empty transmission.
I did not find a Honda primary source in the material reviewed that gives a sufficiently clear, consistently verified total/dry-fill figure for the 2012 1.8-liter 5-speed automatic, so one should not be inferred from the 2.5-quart service quantity. Aftermarket databases sometimes publish larger “initial fill” or “total” figures, but those numbers are not consistent enough with the Honda documentation reviewed here to publish as a factory specification.
If the transmission has been removed, rebuilt, completely drained, or replaced, use the exact factory service procedure for that transmission rather than multiplying the drain-and-fill quantity.

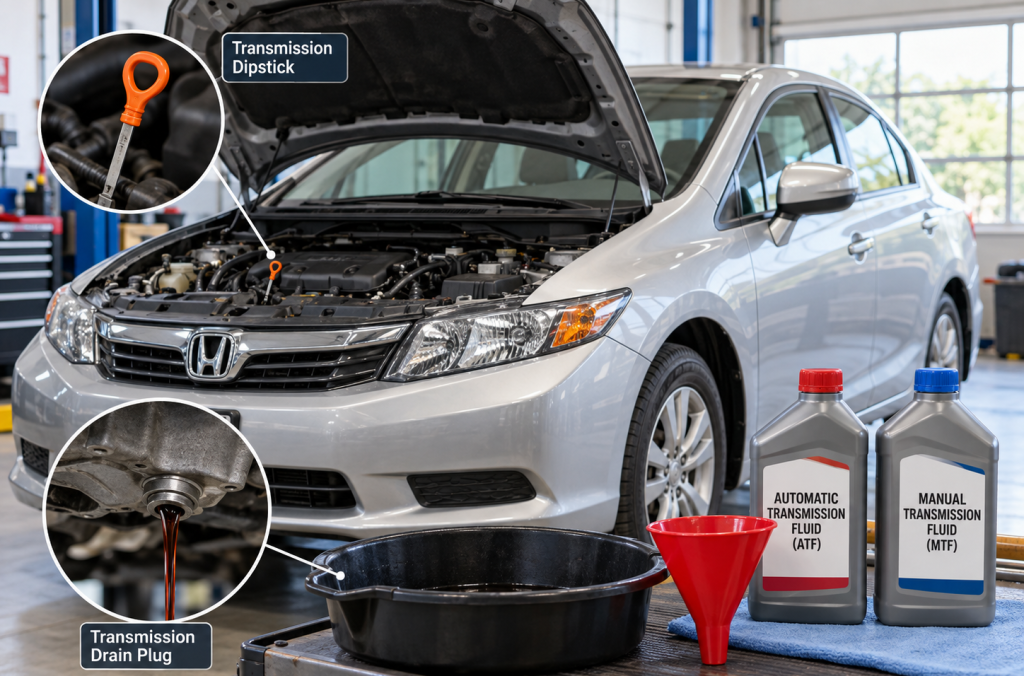

How to Check Fluid Level and Condition
For the 5-speed automatic, Honda requires the ATF to be checked at operating temperature. Factory service information specifies warming the engine until the radiator fan operates, parking on level ground, switching the engine off, and checking the dipstick within approximately 60 to 90 seconds after shutdown.

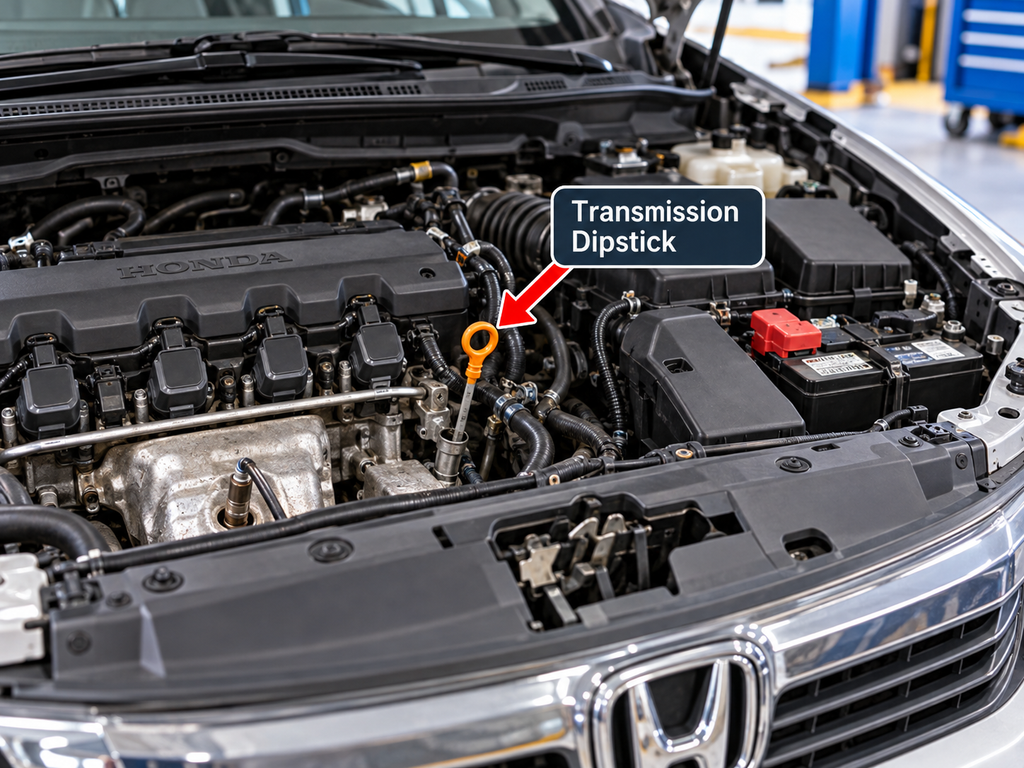

The yellow-loop transmission dipstick is removed, wiped clean, fully reinserted and then removed again. The level should fall between the upper and lower marks in the HOT range. Honda says not to fill above the upper mark. If the level is unexpectedly low, the transmission and associated lines should also be checked for leakage rather than simply being repeatedly topped up.
For the manual transmission, the level is checked at the filler opening rather than with a dipstick. The car must be level, and fluid should reach the edge of the filler hole.
For an actual fluid change, have the specified fluid, a drain container, suitable hand tools, a torque wrench and new sealing washer available before opening the transmission. On the automatic, Honda’s service procedure drains the ATF through the drain plug and refills through the dipstick opening before the final level check. On a manual, the transmission is drained and then refilled with Honda MTF to the filler-hole level.
Signs Fluid Needs Changing
The best service indicator is the car’s Maintenance Minder, not fluid color alone. On the 2012 Civic, Maintenance Minder sub-code 3 means “Replace transmission fluid.”
Fluid condition can still provide useful diagnostic information. ATF that has become unusually dark, contaminated, or has a pronounced burnt odor deserves investigation, especially when accompanied by abnormal shifting. However, color should not be treated as a precise mileage-based test. Fluid can darken during use without proving that the transmission itself has failed.
Changes in shift quality, delayed engagement, slipping or flare between gears can also justify checking the level and condition. Honda’s service information specifically notes that operating with ATF below the lower dipstick mark can cause poor acceleration, flare and potentially transmission damage.
Common Mistakes
A common error is treating 2.5 quarts as the automatic transmission’s total capacity. Honda labels it as the amount for a fluid change. Another is buying fluid for a later Civic CVT even though the regular 2012 gasoline Civic discussed here uses a conventional 5-speed automatic.
Overfilling is also incorrect. Honda’s service procedure specifically requires the ATF level to remain between the dipstick marks; fluid above the upper mark must be corrected.
For manuals, do not assume the 1.8-liter transmission and the Si 6-speed take the same quantity. Their documented service capacities differ by half a US quart. Finally, replace sealing washers where Honda’s procedure calls for them rather than reusing damaged or heavily crushed washers.
FAQ
Does a 2012 Honda Civic automatic use ATF DW-1?
Yes. For the conventional 1.8-liter 5-speed automatic covered here, Honda specifies Honda ATF DW-1.
How much ATF does a 2012 Civic take?
For a routine drain and refill, Honda specifies 2.5 US qt (2.4 L) for the 1.8-liter 5-speed automatic. That should not be described as total or dry capacity.
How much manual transmission fluid does the Civic Si take?
The 2012 Civic Si 2.4-liter six-speed manual has a documented change capacity of 2.0 US qt (1.9 L) and uses Honda Manual Transmission Fluid.
Are sedan and coupe capacities different?
The decisive factor is the installed engine and transmission, not simply whether the car is a sedan or coupe. Honda sold both body styles with multiple drivetrain combinations, including the Si’s separate 2.4-liter/6-speed configuration. Verify the VIN and transmission before ordering fluid.
Sources/Further Verification
- 2012 Honda Civic Owner’s Manual, Honda/owner-manual specifications and maintenance sections: ATF DW-1, Honda MTF, service capacities, ATF checking procedure and Maintenance Minder transmission-fluid service. Car Manuals Online
- Honda 2012 Civic factory service information, as reproduced in the service-manual database Operation CHARM: 1.8L ATF and MTF capacities, Si MTF capacity, fluid specifications and level/replacement procedures. Charm
- American Honda 2012 Civic Press Kit: factory confirmation of 5-speed manual, 5-speed automatic, Si 6-speed manual and Hybrid CVT configurations. Honda Newsroom
- Honda Canada 2012 Civic specifications: contemporary Honda documentation confirms the 2.4-liter Si with its 6-speed manual and the 1.8-liter Civic drivetrain configurations. Honda Canada
- Edmunds and Car and Driver: independent cross-checks of the 2012 1.8-liter manual/automatic choices and 2.4-liter Si six-speed configuration. Edmunds
